Victorian Wooden Mock Sash Window 900 x 1500 mm – PMSV4

Victorian wooden mock sash window – PMSV4

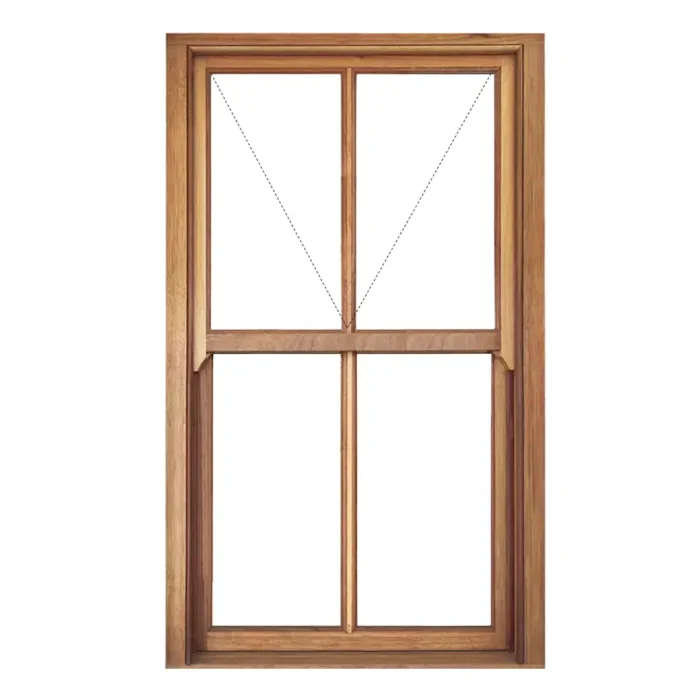

The PMSV4 is a 900 mm wide × 1500 mm high Meranti wooden mock sash window manufactured by K Parker Joinery. This 900 mm-wide model has a taller 1500 mm profile.

The Victorian design uses vertical glazing bars to divide the panes in both sashes. The vertical divisions add traditional detailing while keeping the appearance more open than a cottage pane grid.

How this mock sash window opens

The top sash is top hung and opens outwards for ventilation. The bottom sash stays fixed. Neither sash slides vertically; the design provides a sash-window appearance with a hinged opening.

PMSV4 specifications

• Product code: PMSV4
• Width: 900 mm
• Height: 1500 mm
• Style: Victorian
• Pane layout: Vertically divided panes in both the opening top sash and fixed bottom sash.
• Timber: Meranti
• Operation: opening top sash; fixed bottom sash
• Finish: supplied untreated, factory-sanded to 120 grit
• Glazing choices: No glass or 4mm Float Glass Clear
• Lead time: 14–21 working days

Glazing and ordering

Select No glass if you are arranging your own glazing, or 4mm Float Glass Clear to order the glass with your window. When ordered with glass, it is supplied loose for fitting on site after installation and finishing. Confirm your measurements and chosen glazing option before ordering.

Need a different size? Contact K Parker Joinery with your required width and height for a custom quotation. Compare the wooden mock sash window styles and standard sizes before choosing your window.

Warranty, Handling & Installation

Check your window before installation to make sure it matches your order and has no defects. Report any issues in writing within 24 hours to kelly@kparkerjoinery.co.za.

Store the window upright, under cover, on a dry surface, and treat all six sides before fitting. Remove the staff beading to treat both sashes. Avoid dark exterior colours such as black to prevent heat damage.

When installing, use fixing lugs across the hardwood frame. Do not drill into the vertical stiles. Waterproof the surrounding area and check that the frame is square and level before glazing.

All glazing must follow SANS 10400-N standards. Ensure correct tolerances and use neutral silicone for laminated glass.
