Cottage (Small) Pane Wooden Mock Sash Window 1200 x 1800 mm – PMSC7

Cottage (Small) Pane wooden mock sash window – PMSC7

The PMSC7 is a 1200 mm wide × 1800 mm high Meranti wooden mock sash window manufactured by K Parker Joinery. This 1200 mm-wide model is the tallest standard size in this style.

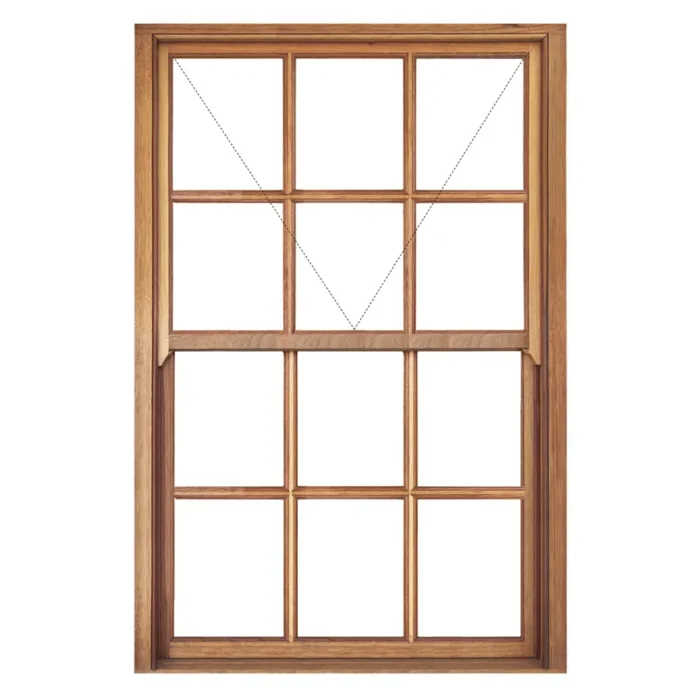

The cottage pane design uses horizontal and vertical glazing bars to create a grid of smaller panes in both sashes. Choose this style for a more detailed, traditional appearance than the full pane or Victorian designs.

How this mock sash window opens

The top sash is top hung and opens outwards for ventilation. The bottom sash stays fixed. Neither sash slides vertically; the design provides a sash-window appearance with a hinged opening.

PMSC7 specifications

• Product code: PMSC7
• Width: 1200 mm
• Height: 1800 mm
• Style: Cottage (Small) Pane
• Pane layout: A grid of small panes in both the opening top sash and fixed bottom sash.
• Timber: Meranti
• Operation: opening top sash; fixed bottom sash
• Finish: supplied untreated, factory-sanded to 120 grit
• Glazing choices: No glass or 4mm Float Glass Clear
• Lead time: 14–21 working days

Glazing and ordering

Select No glass if you are arranging your own glazing, or 4mm Float Glass Clear to order the glass with your window. When ordered with glass, it is supplied loose for fitting on site after installation and finishing. Confirm your measurements and chosen glazing option before ordering.

Need a different size? Contact K Parker Joinery with your required width and height for a custom quotation. Compare the wooden mock sash window styles and standard sizes before choosing your window.

Warranty, Handling & Installation

Check your window before installation to make sure it matches your order and has no defects. Report any issues in writing within 24 hours to kelly@kparkerjoinery.co.za.

Store the window upright, under cover, on a dry surface, and treat all six sides before fitting. Remove the staff beading to treat both sashes. Avoid dark exterior colours such as black to prevent heat damage.

When installing, use fixing lugs across the hardwood frame. Do not drill into the vertical stiles. Waterproof the surrounding area and check that the frame is square and level before glazing.

All glazing must follow SANS 10400-N standards. Ensure correct tolerances and use neutral silicone for laminated glass.

See our complete range of Wooden Mock Sash Windows here.
